TRVVPPS high-performance multi-core dynamic drag chain cable Custom
  • TRVVPPS high-performance multi-core dynamic drag chain cable
  • TRVVPPS high-performance multi-core dynamic drag chain cable
  • TRVVPPS high-performance multi-core dynamic drag chain cable
  • TRVVPPS high-performance multi-core dynamic drag chain cable
  • TRVVPPS high-performance multi-core dynamic drag chain cable
  • TRVVPPS high-performance multi-core dynamic drag chain cable
  • TRVVPPS high-performance multi-core dynamic drag chain cable
  • TRVVPPS high-performance multi-core dynamic drag chain cable
  • TRVVPPS high-performance multi-core dynamic drag chain cable
  • TRVVPPS high-performance multi-core dynamic drag chain cable
  • TRVVPPS high-performance multi-core dynamic drag chain cable
  • TRVVPPS high-performance multi-core dynamic drag chain cable
  • TRVVPPS high-performance multi-core dynamic drag chain cable
  • TRVVPPS high-performance multi-core dynamic drag chain cable

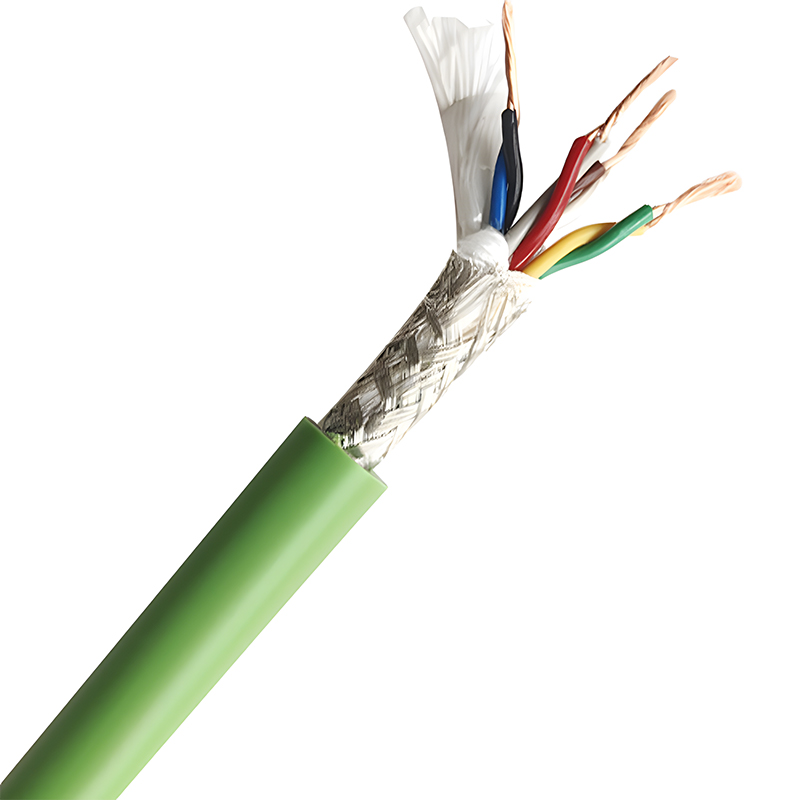

TRVVPPS high-performance multi-core dynamic drag chain cable


Proseso ng produksyon:
Na-rate na temperatura: -15°C hanggang 70°C (polyurethane material -30°C hanggang 80°C)
Na-rate na boltahe: 300/300V para sa cross-sectional area <0.5mm², 300/500V para sa cross-sectional area ≥0.5mm²
Materyal ng konduktor: Pinong hubad na tansong kawad
Insulation material: PVC/TPE/PE/automotive grade
Pansasang materyal: Aluminum foil wrap na tinned wire braid
Material ng jacket: Oil-resistant, halogen-free, flame-retardant, at low-viscosity high-strength composite

Mga Tampok ng Produkto:
Flexible, mobile, wear-resistant, oil-resistant, bending-resistant, twist-resistant, at fold-resistant

Pagtatanong Ngayon
  • Mga pagtutukoy, istraktura at teknikal na mga parameter:

    Cross-sectional na lugar

    (mm²)

    Minimum na panlabas na diameter

    (mm)

    Pinakamataas na panlabas na diameter

    (mm)

    Tinatayang timbang(kg/km)

    1×2×0.14

    4.2

    4.6

    25

    2×2x0.14

    5.8

    6.4

    42

    3×2×0.14

    6

    6.6

    50

    4×2×0.14

    6.5

    7.1

    59

    5×2×0.14

    7

    7.7

    66

    6×2×0.14

    7.5

    8.2

    76

    8×2x0.14

    8.9

    9.8

    100

    1×2x0.25

    4.5

    4.9

    30

    2×2x0.25

    6.3

    6.9

    50

    3×2x0.25

    6.6

    7.3

    61

    4×2×0.25

    7.1

    7.8

    73

    5×2×0.25

    7.7

    8.4

    83

    6×2×0.25

    8.4

    9.3

    99

    8×2×0.25

    9.8

    10.8

    126

    1×2×0.5

    5.8

    6.4

    50

    2×2×0.5

    8.4

    9.3

    84

    3×2×0.5

    8.9

    9.8

    106

    4×2x0.5

    9.6

    10.6

    130

    5x2x0.5

    10.6

    11.7

    154

    6×2x0.5

    11.7

    12.8

    183

    8×2×0.5

    13.9

    15.3

    242

    1×2x0.75

    6.2

    6.9

    60

    2×2x0.75

    9.1

    10.1

    101

    3×2×0.75

    9.6

    10.6

    131

    4×2×0.75

    10.6

    11.7

    170

    5×2x0.75

    11.8

    12.9

    196

    6×2×0.75

    12.7

    14

    227

    8×2×0.75

    15.2

    16.8

    305

    Tandaan: Maaari kaming gumawa ng mga produkto ng iba't ibang mga detalye ayon sa mga pangangailangan ng customer.
